In high-temperature industries—glass, steel, non-ferrous metallurgy, petrochemical incineration—refractory selection is ultimately a risk decision. For fused corundum refractory bricks, performance is not “claimed”; it is engineered through raw material discipline, controlled fusion refining, and forming/sintering parameters that consistently deliver dense microstructure, low open porosity, and stable high-temperature behavior. This guide explains how the process is typically executed in modern plants, and how quality is managed under systems such as ISO 9001 and ISO 14001, with test methods procurement teams can verify.
Fused corundum bricks are commonly built on a high-purity alumina (Al2O3) system. In practice, the stability of the finished product is highly sensitive to raw material variability, especially alkali/alkaline earth impurities and silica content. A robust specification usually controls:
| Item | Why It Matters | Common Control Target (Reference) | Verification Method |
|---|---|---|---|
| Al2O3 purity | Defines refractoriness, corrosion resistance | ≥ 99.0% for fused corundum feed | XRF / wet chemical analysis |
| SiO2, Na2O, K2O | Affects glassy phase formation and creep | SiO2 ≤ 0.3%; Na2O+K2O ≤ 0.2% | XRF, ICP-OES |
| Fe2O3, TiO2 | May reduce corrosion resistance in certain melts | Fe2O3 ≤ 0.1%; TiO2 ≤ 0.2% | XRF |
| Particle size distribution | Controls packing density and green strength | Optimized multi-modal grading | Sieve analysis / laser diffraction |
Note: Targets vary by application (e.g., glass contact vs. non-contact zones). Buyers typically request a COA per batch plus third-party verification for critical campaigns.
In well-controlled manufacturing, incoming material acceptance is not a formality—it is a gate. If the feed chemistry and grading drift, downstream process control becomes “correction,” not “engineering,” and product consistency becomes harder to sustain.
Fused corundum is produced by melting high-purity alumina in an electric arc furnace (or equivalent high-temperature fusion system), typically above 2000°C, allowing impurities to separate and the melt to homogenize. The goal is a refined, uniform corundum phase with minimal undesired glassy content.
From a procurement perspective, the most meaningful evidence is not a single “peak value” from a brochure, but batch-to-batch repeatability. Manufacturers with mature fusion management typically show narrower variability in bulk density and apparent porosity across lots—critical for furnace zones where temperature cycling and corrosive vapors coexist.
| Parameter | Common Range (Reference) | What Buyers Should Watch |
|---|---|---|
| Bulk density | ≥ 3.0 g/cm³ | Consistency across lots; higher is not always better if it increases thermal stress risk |
| Apparent porosity | ≤ 16% | Lower porosity generally improves corrosion resistance; check variability |
| Cold crushing strength (CCS) | ≥ 80–120 MPa | Ensure test standard is stated; compare like-for-like specimen dimensions |
| Refractoriness under load (RUL) | ≥ 1700°C (application dependent) | Verify load and heating rate; request the curve if available |
These values are industry references, not universal guarantees. A credible supplier provides test standards, tolerances, and statistical stability (e.g., last 6–12 months trend).
After fusion and solidification, the fused corundum block is crushed and precisely graded. This step is frequently underestimated, yet it largely determines how well the brick compacts and how continuous the internal structure becomes. A multi-modal particle size distribution typically enables higher packing density with fewer interconnected pores.
Mixing then integrates the graded aggregates with matrix fines and selected binders. The practical goal is to achieve uniform coating of fines, predictable flowability, and stable moisture content—key for repeatable forming pressure response.

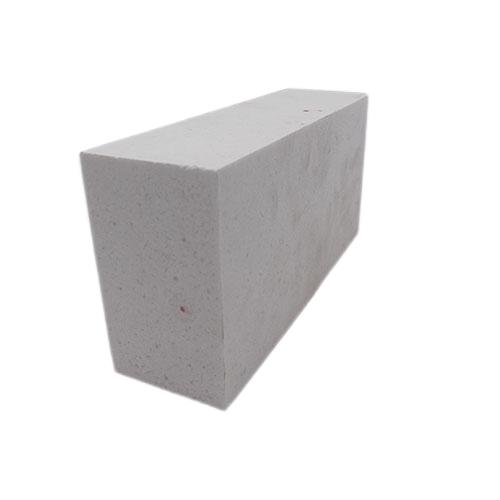

Forming can involve high-pressure pressing or casting routes depending on the brick design and target properties. In most plants, forming parameters—pressure, dwell time, mold condition, and green density—are recorded as part of a controlled production plan. Stable green density reduces warping, cracking, and dimensional drift during firing.
Firing (sintering) then consolidates the structure. A controlled thermal schedule helps limit residual stresses and supports the intended bonding between aggregate and matrix. For buyers, the practical evidence of strong firing control is: tight dimensional tolerances, low dispersion in apparent porosity, and stable thermal shock behavior under repeatable tests.
Certifications matter when they translate into daily discipline. Under ISO 9001, the core value for refractory buyers is process repeatability: documented control plans, calibrated instruments, nonconformance handling, and traceability from melt batch to finished brick lot. Under ISO 14001, responsible fusion operations typically strengthen dust control, waste handling, energy management, and compliance documentation—important for partners with strict ESG and supplier audit requirements.
In fused corundum bricks, a small set of physical indicators often predicts field stability. The following methods are widely used; the critical point is to confirm the exact standard, specimen geometry, and conditioning method so results remain comparable across suppliers.
Measures compressive failure stress at room temperature. Useful for handling and mechanical load indication, but should be interpreted together with porosity and microstructure. Typical reporting includes maximum load, specimen size, and loading rate.
Determined by boiling/immersion methods and mass measurements. Lower open porosity generally improves corrosion resistance and limits infiltration of slags or vapors. However, extremely low porosity without proper thermal design can raise thermal stress sensitivity in some cycling zones.
Often reported as cycles to failure under defined heating/cooling conditions. Buyers should request the temperature delta (ΔT), hold time, quench medium (air/water), and failure criteria. A “high cycle number” is meaningful only when the test conditions match the service environment.
RUL and creep tests indicate deformation under load at elevated temperatures. For long campaigns, these indicators can be more predictive than CCS. Procurement teams often request time–temperature curves or a defined deformation criterion.
In one typical high-temperature furnace lining retrofit (non-ferrous thermal processing), the operator’s primary target was to reduce unplanned shutdowns caused by local spalling and hot-face wear. After switching to a denser fused corundum brick design with tighter porosity control and improved batch consistency, the site reported:
| Operational KPI | Before | After | Procurement Takeaway |
|---|---|---|---|
| Campaign life (hot-face zone) | ~9–10 months | ~12–14 months | Consistency + correct zoning can extend service intervals |
| Unplanned maintenance events | 3–4 per year | 1–2 per year | Audit thermal shock data and workmanship guidance |
| Specific energy consumption | Baseline | ~1–3% reduction | Lining integrity helps stabilize thermal efficiency over time |
These figures are context-dependent and influenced by installation quality, operating discipline, and zoning design. They illustrate how process-controlled bricks can support measurable operational stability.
For many decision makers, the biggest hidden cost is not the brick—it is the downtime, temperature instability, and emergency labor. That is why engineering teams increasingly evaluate fused corundum bricks through a combination of test method transparency, lot-to-lot stability, and service-fit evidence.
Buyers searching via AI-assisted engines tend to reward pages that show verifiable structure: defined process steps, test methods, standards language, and audit-ready documentation. In the refractory space, content that explains how results are produced and measured is typically more trusted than content that only lists “advantages.” This also aligns with modern supplier qualification workflows, where technical review and QA documents often decide the shortlist before pricing is discussed.
Within this context, Rongsheng Refractory positions fused corundum refractory brick development around disciplined fusion refining, controlled particle engineering, and traceable QC practices—an approach that helps technical teams evaluate suitability for extreme duty zones with fewer assumptions.
Access technical datasheets, typical test standards, and application notes to support engineering selection and supplier qualification.
Explore fused corundum refractory brick technical resources
